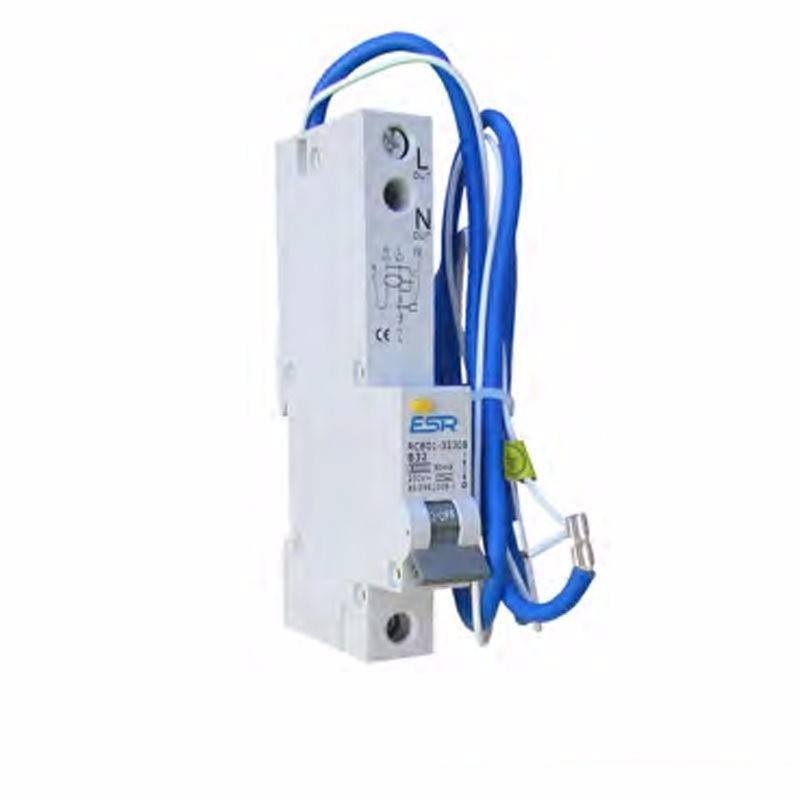

The Single Pole CCurve RCBO Breakers from ESR are available in a range of amp ratingsincluding 6 Amp, 16 Amp and 32 Amp. This range includes the RCBO1-630C, RCBO1-1630C andRCBO1-3230Cmodels.

An RCBOcircuit breaker is a current breakercomprised ofRCD andMCBfunctions designed to protect the user and their property from overloads and short circuits by breaking the current as is passes through your consumer unit in the event of suggested dangerous earth leakage.RCBOs are known to save lives and are a commonly used component in domestic consumer unit configurations.

These RCBO modules will use 1 module/way on your consumer unit rail bar, and are ideal for heavy domestic use in the C curve option such as when wiring circuitry formotorized appliances such aswashing machines, tumble driers etc, or where fluorescent lighting is used. All models in this list will trip at 30mA.

C curve RCBOswill trip at 5-10 times the rated current. Therefore we advise consulting your electrician if you are unsure which curve or current is right for your desired application, as the wrong type may cause unnecessary tripping or create a potential hazard.

Main Features:

• Single pole RCBOcircuit breakers in a range of current and curve options
• Easily installed in your ESR modular consumer unit
• Safe and reliable product that is known to save lives and severely reduce risk ofproperty damage

Technical Specification:

• Voltage: 230V
• Frequency: 50 Hz
• Modular size: 1 Module/way
• Pole: Single Pole
• Rated Trip Current = 30mA
• BS EN61009-1

Models in this range:

RCBO1-630C– CCurve 6KA Single Pole RCBO – 6A 30mA
RCBO1-1630C– CCurve 6KA Single Pole RCBO – 16A 30mA
RCBO1-3230C– CCurve 6KA Single Pole RCBO – 32A 30mA
