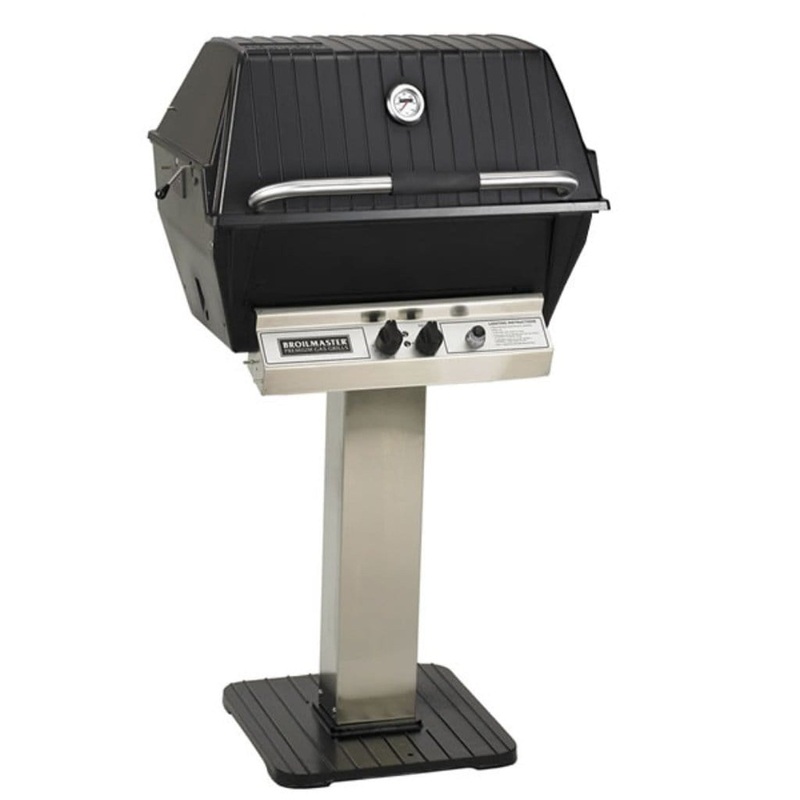

The Broilmaster P3X Premium Natural Gas Grill with 26″ stainless steel patio post offers a fixed, professional setup ideal for outdoor kitchens or permanent patio installations. Its heavy-duty cast aluminum grill head delivers durability, while the powerful 40,000 BTU stainless steel bowtie burner ensures even heat distribution across your cooking surface.
Equipped with multi-level stainless steel cooking grids and Charmaster Briquets, this grill enhances flavor while offering flexibility for different food types. The stainless steel Retract-A-Rack adds convenience when juggling multiple dishes or prepping for larger meals.
Mounted on a sturdy stainless steel post, this model provides stability with a clean, space-saving design. Whether slow-roasting or high-heat grilling, the P3X offers performance, reliability, and versatility for serious outdoor cooking.
What’s Included:
- Gas Grill Head Assembly
- Stainless Steel Cooking Grid
- Stainless Steel Folding Retrack-A-Rack
- Char-Master Briquets
- Briquette Grate
- Stainless Steel Bowtie Burner
- Patio Post
Not Included (Sold Separately):
- Grill Cart
- Side Shelf
- Flavor Enhancer
- Gas Conversion Kit
- Side Burners
- Rotisserie Kit
- Grill Cover
- Griddle
- Smoker Shutter
- Diamond Patterned Cooking Grid
- Grid Lifter Kit
Features:
- 695 Sq. In. of Total Cooking Area
- Heavy-Duty Cast Aluminum Construction
- 40,000 BTU
- “8” Shaped Stainless Steel Bowtie Burner
- Multi-level Stainless Steel Cooking Grids
- Stainless Steel Control Panel
- Stainless Steel Folding Retract-A-Rack
- Charmaster Briquets
- Fits all Broilmaster Mountings
Post Features:
- Durable, rust-resistant steel construction with cast iron base
- Compatible with Broilmaster P3 & P4 series grill heads
|
Heavy-Duty Cast Aluminum Construction
Designed to Last and Maintain Cooking Temp
|
|
|
Stainless Steel Bow Tie Burner
Evenly Distributes Heat Across the Cooking Area
|
|
Multi-Level Stainless Steel Cooking Grids
Provide Control Over Food Distance To The Flame
|
|
|
Stainless Steel Folding Retrack-A-Rack
Serves as an Added Cooking Level and Retracts For Additional Cooking Space
|
|
Char-Master Briquets
Maximize Heat Distribution and Burner Protection
|
|
|
Stainless Steel Control Panel
Separate Left and Right Controls For Indirect Cooking, Grilling, and Roasting
|
Specifications:
| Model |
P3X |
| Fuel Type |
Natural Gas |
| Maximum BTU Output |
40,000 |
| Total Grilling Area |
695 Sq. Inches |
| Primary Cooking Dimensions |
26 3/4″ W x 17″ D |
| Color |
Black |
| Item Weight |
76 lbs. |
| Overall Dimension |
W 26 3/4″ x D 18 3/4″ x H 20 1/2″ |
| Main Burner Configuration |
Conventional |
| Number of Main Burners |
1 Burner |
| Ignition |
Electronic/Continuous Battery Powered Push Button |
| Cooking Grid Material |
Stainless Steel |
| Warming Rack Material |
Stainless Steel |
| Burner Material |
Stainless Steel |
| Grill Exterior Material |
Cast-Aluminum |
| Post Material |
Stainless Steel |
| Post Weight |
30 lbs. |
| Post Dimension |
6″ 4.5″ 26″ |
Warranty:
|
LIMITED LIFETIME Against Rust-through
|
Aluminum Grill Housing (except paint), Stainless Steel Cooking Grids and Stainless Steel Griddles, Select Stainless Steel Components Cart, Mounting, Bow Tie Burner, Side Burner (DPA150), Side Burner (DPA151), Side Shelf (DPA153), and Warming Rack, Stainless Steel Built-In Components Built-In Kits for 3-Series Grill Heads, Side Burner Surround (DPA152), Door Kit, Tilt-Out LP Tank Door, and Vent Register Kit |
|
10 YEARS – Against Rust-through
|
Stainless Steel Burners for H-Series and R3B |
|
5 YEARS – Against Rust-through
|
Infrared Burners on R3 and R3B, and Side Burner (DPA151), Flare Buster Ceramic Flavor Enhancer, Painted Electro-Galvanized Steel Components, Stainless Steel Smoker Shutter |
|
2 YEARS – Against Rust-through
|
Porcelain Coated Steel Briquet Racks, Chrome-Plated Warming Rack, Stainless Steel Flavor Screen, Stainless Steel Heat Shield |
|
1 YEAR – Against Rust-through
|
Valves, knobs, ignitors, labels, hoses, fittings, grease cups, drip buckets, and all other parts and accessories including those made from stainless steel unless specified above, paint on aluminum grill head |
Documents & Files:
- P3X Owners Manual
- Broilmaster Brochure
- Post Owner’s Manual
- Cart With Door Owner’s Manual
- Cart With Base Owner’s Manual
- Solid Surface Front Shelf Kit Owner’s Manual
- Solid Surface Drop-Down Shelf Kit Owner’s Manual
- Flare Buster Flavor Enhancer Owner’s Manual
Videos:
About The Manufacturer:
Since 1966, grilling enthusiasts have trusted Broilmaster for exceptional performance, durability, and unmatched support.Backed by quality and support, Broilmaster owners grill on their Broilmaster for decades and pass them on to the next generation.
Reviews
There are no reviews yet.
