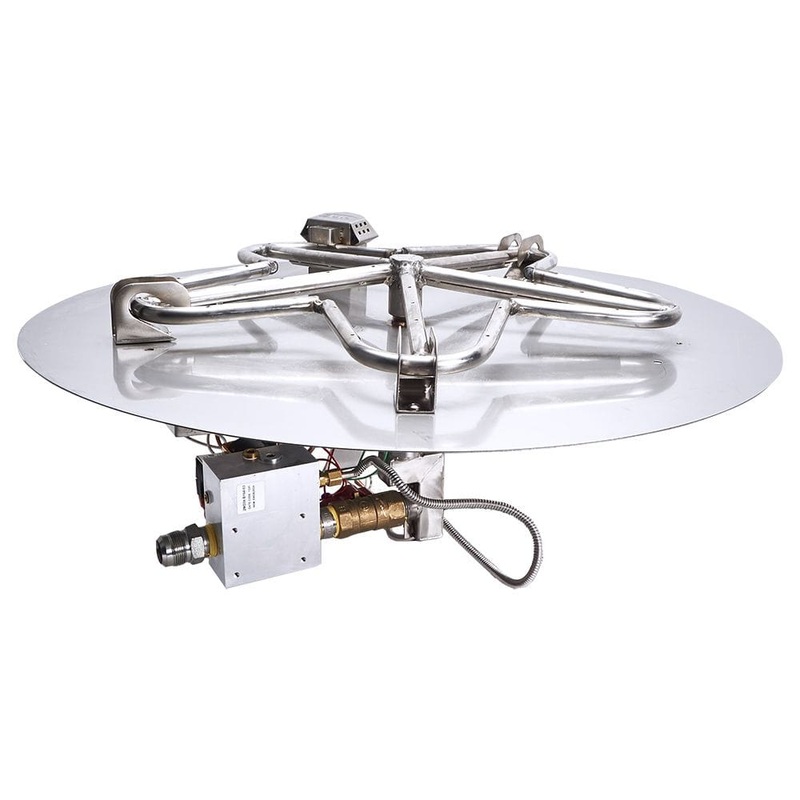

HPC Fire Standard Penta Burner with Round Plate Electronic Ignition Gas Fire Pit Kit 14×12-Inch Round On/Off – 24VAC Propane
Product OverviewHPC Fire Standard Penta Burner with Round Plate Electronic Ignition Gas Fire Pit Kit combines durable craftsmanship with cutting-edge technology, making it a great choice for your gas fire pit project. Its Hot Surface Ignition (EI) system a
Product Overview
HPC Fire Standard Penta Burner with Round Plate Electronic Ignition Gas Fire Pit Kit combines durable craftsmanship with cutting-edge technology, making it a great choice for your gas fire pit project. Its Hot Surface Ignition (EI) system allows for electronic ignition via a remote control, with options for ON/OFF or HI/LO flame settings.
Equipped with an advanced flame-sensing system, this kit features a pilot light and thermocouple that monitor flame activity. If the flame goes out, the system automatically shuts off the gas valve for safety.
Constructed from high-grade 304 stainless steel, the Penta-shaped burner (except for 14FSSEI models) includes standard burner ports and a 1/2″ or 3/4″ female gas inlet. The seamless design is achieved through precision machine welding. Both the burner and pan are backed by HPC’s Limited Lifetime Warranty.
This kit supports both natural gas and propane, arriving pre-assembled with the round flat pan and hard piping for the sealed control box. Propane units also include a spider guard to prevent gas line blockages.
One of the standout features is the patented solid brass Universal Gas Orifice (UGO), which simplifies gas type conversion. With the UGO, switching between natural gas and propane is a hassle-free process that doesn’t require taking apart the appliance or using additional conversion parts. This makes it one of the most versatile and convenient gas fire pit kits on the market.
Available in a 120 VAC version with a standard three-prong plug for GFI outlets, or a 24 VAC version requiring an external power supply (sold separately). The ON/OFF model needs an external switch, timer, or optional remote (SKU: 578-C) for operation, while the HI/LO version comes with a remote and is compatible with the HPC smartphone app for convenient control. The HI/LO version also offers two flame height settingsmaximum flame on “HI” and a 40% reduction on “LO.” The app also provides on/off control, a timer, and troubleshooting features.
NOTE: This product is not intended for use with small fuel tanks.
Also available in Torpedo Burner: HPC Fire Torpedo Penta Burner with Round Plate Electronic Ignition Gas Fire Pit Kit
What’s Included
- Fully Assembled Fire Pit Kit (Includes Plate and Standard Burner)
- Stainless Steel Valve Control Box
- Remote Control with Bluetooth App (for Hi/Lo units only)
- Owner’s Manual
Optional Accessories
- Remote
- Timer
- E-Stop
- Power Supply
- Wind Guard
- Fire Pit Cover
- Vinyl Cover
- Log Set
- Lava Rock and Stone – 10lbs.
- Premium Reflective Fire Glass – 1/2″ 10-lbs.
- Fire Beads – 1/2″ 10-lbs.
Note: Useour convenientFire Glass CalculatororLava Rock Calculatorto determine the amount of fire glass or lava rock required for your fire feature.
Features
- Durable Construction: Made with high-quality materials, including the solid brass UGO and stainless steel components, for long-lasting, reliable use.
- Universal Gas Orifice (UGO): The patented solid brass UGO allows seamless conversion between natural gas and propane without disassembling the appliance or needing additional parts. This feature ensures easy field conversions, enhancing flexibility for various applications.
- Pre-Assembled Design: The burner comes attached to the round flat pan and includes all necessary fittings, reducing installation time and effort.
- Hot Surface Ignition System: 120V or 24V electronic startup utilizes hot surface ignition to reliably ignite, every single time
- Automatic Flame Sensor: Unique sensor detects if the pilot goes out and automatically closes the gas valve for added safety
- Sealed Control Box with Flexible Gas Line: Comes fully assembled with hard piping and a flexible gas line for easy connection and secure operation. The water-resistant control box, made from stainless steel, is designed to withstand outdoor conditions and ensure durability.
- Wire Mesh Spider Guard (Propane Models): Propane units include a spider guard to protect the gas line from blockages, ensuring smooth and reliable performance.
- Optional Remote Control: Standard units offer an optional On/Off remote control for easy operation, while HI/LO units come with the remote control included, giving you full flame control at your fingertips.
- Smartphone App Compatibility: HI/LO units are compatible with the exclusive HPC Fire app, allowing wireless control of your fire pit via Bluetooth for added convenience. Adjust flame height, set timers, and troubleshootall from your smartphone.
- CSA Certified: The burner kit is CSA Certified, meeting the highest safety and quality standards for outdoor gas fire pits, ensuring reliable and safe performance.
| Specifications | |||||||
| Manufacturer | HPC Fire | HPC Fire | HPC Fire | HPC Fire | HPC Fire | HPC Fire | HPC Fire |
| SKU Number | 14SSEI | PENTA18EI | PENTA24EI | PENTA30EI | PENTA36EI | PENTA42EI | PENTA54EI |
| BTU | 90K | 65K | 125K | 200K | 250K | 400K | 400K |
| Material | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| Ignition Type | Electronic Hot Surface | Electronic Hot Surface | Electronic Hot Surface | Electronic Hot Surface | Electronic Hot Surface | Electronic Hot Surface | Electronic Hot Surface |
| Ignition Style | Electronic Ignition On-Off /Hi-Lo | Electronic Ignition On-Off /Hi-Lo | Electronic Ignition On-Off /Hi-Lo | Electronic Ignition On-Off /Hi-Lo | Electronic Ignition On-Off/Hi-Lo | Electronic Ignition On-Off | Electronic Ignition On-Off |
| Fuel Type | Natural Gas / Liquid Propane | Natural Gas / Liquid Propane | Natural Gas / Liquid Propane | Natural Gas / Liquid Propane | Natural Gas / Liquid Propane | Natural Gas / Liquid Propane | Natural Gas / Liquid Propane |
| Pan Size | 14″ | 18″ | 24″ |
30″ | 36″ | 42″ | 54″ |
| Pan Shape | RoundFlat | RoundFlat | RoundFlat | RoundFlat | RoundFlat | RoundFlat | Round Flat |
| BurnerSize | 12″ | 12″ | 18″ | 24″ | 30″ | 36″ | 48″ |
| BurnerType | Round | Penta | Penta | Penta | Penta | Penta | Penta |
| Power Options | 120VAC / 24VAC | 120VAC / 24VAC | 120VAC / 24VAC | 120VAC / 24VAC | 120VAC / 24VAC | 120VAC / 24VAC | 120VAC / 24VAC |
Documents
- Product Drawing
- Installation & Operation Instructions (On/Off Kits)
- Installation & Operation Instructions (High/Low Kits)
- Universal Gas Orifice (UGO) Manual
- HPC Fire App Instructions
- CSA Certification
- HPC Outdoor Catalog
