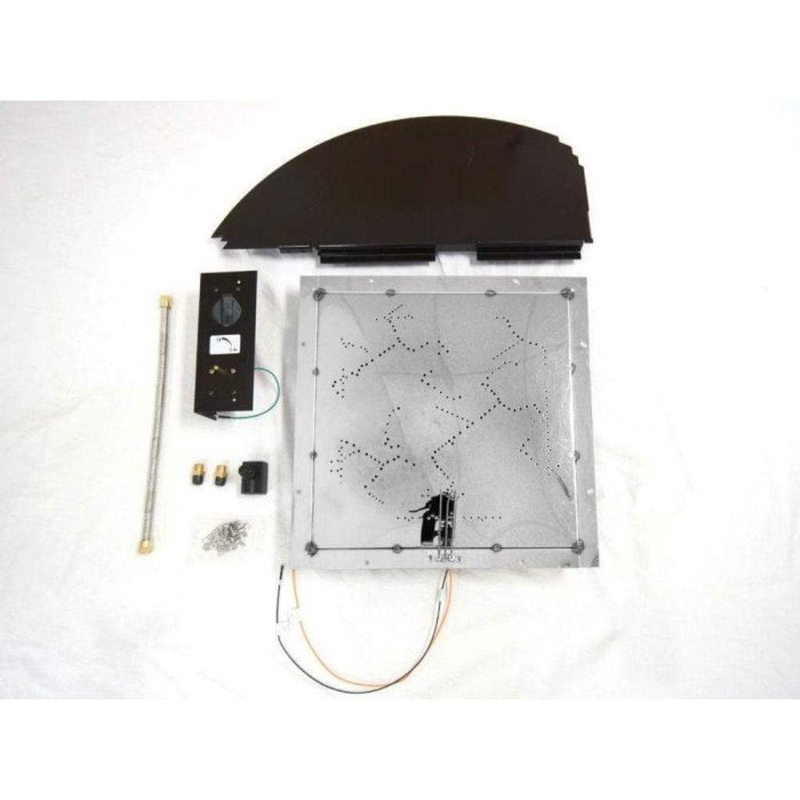

Transform your backyard into a cozy retreat with The Outdoor GreatRoom Company 38″ Round DIY Hardscape Gas Fire Burner Kit. Designed for custom-built hardscape projects, this kit comes complete with a powerful 107,500 BTU burner assembly, piezo electronic ignition, and essential components like flex line, grounding wire, burner supports, and a key valve control panel. It’s set up for natural gas by default but can be converted for liquid propane, offering versatility based on your outdoor setup.
Ideal for fire pit installations using pavers or blocks, this UL-listed kit fits a max 32″/37″ inner and outer diameter. Note that hardscape block, lava rock, fire glass, and LP hose are sold separately, allowing you to personalize the final look and feel. Whether you’re a contractor or a hands-on homeowner, this kit simplifies installation while delivering professional-grade performance and ambiance.
Features:
- Burner assembly and instructions
- Piezo electronic ignition
- Flex line
- Grounding wire
- Burner supports
- Set up for natural gas but can be converted for liquid propane
- Extension control panel with key valve
- 107,500 BTU’s/hour
- UL Listed
- Hardscape block, lava rock, (30 lbs) of tempered fire glass gems, log set, paver blocks, and LP hose sold separately
- Max inner/outer diameter is 32″/37″
- WARNING: This product can expose you to chemicals including Carbon Monoxide and Benzene which are known to the State of California to cause cancer or birth defects or reproductive harm.
Specifications:
| Weight |
32 lbs |
| Diameter |
38″ |
| Height |
3″ |
| BTU’s (NG) |
107,500 |
Manuals:
| Crystal Fire Burner Manual |
Download |
| DIY-38 Fire Burner Kit Manual |
Download |
Options and Accessories:
Ceramic Fiber Fire Pit Log Set
- Made from lightweight concrete
- Includes six refractory cement-based logs, a grate for the logs, and lava rock
|
|
Tempered Fire Glass Gems- 30 lb kit
- Available in 5 Colors: Aqua Marine, Amber, Clear, Onyx, and Ruby
- Weight: 30 lb bag
- Tempered Fire Glass
- Great Accessory for any Fire pit table or Fireplace
|
|
Black Lava Rock – 2 bag
- Black Lava Rock
- .5 cubic foot bag or approximately 20 lbs
-
2 bagsrecommended for CF12120, CF-1242-L, DIY-38-KIT
|
|
Crushed Tempered Fire Glass – 30 lb
-
30 lb needed for DIY-38-KIT
- Available in 2 colors: Black and Copper
- Tempered Glass
- Great Accessory for any Fire pit table or Fireplace
|
|
Large Tempered Fire Glass Diamonds – 30 lb Kit
- Available 2 Colors: Black and Copper
- Weight: 30 lb bag
- Tempered Fire Glass
- Great Accessory for any Fire pit table or Fireplace
|
|
Tumbled Lava Rock – 36 lb kit
- Comes in a 36 lb. bag
- Tumbled Lava Rock may appear darker when you first open the package. After it is burned and the extra moisture is released they will turn more grey.
|
|
Direct Spark Ignition
- Natural Gas Direct Spark Ignition
- Liquid Propane Direct Spark Ignition
- 140K BTU Natural Gas/ Liquid Propane Automatic Valve
|
|
6.5″ x 6.5″ DIY Control Panel with Gas Valve
- Do-it-yourself control panel with gas valve
- 6.5″ x 6.5″
- Black or Brown powder coated
|
|
DIY Expansion Control Panel with 0.25″ Turn Key Valve
- Do-it-yourself expansion control panel with 1/4 turn key valve
- 3/8″ fitting
- Black powder coated
- Can be sued with different block sizes
|
|
6.375″ x 6.375″ Control Panel with 1/4 turn Key Valve Built In – 1/2″ Fitting
- Do-it-yourself control panel with 1/4 turn key valve
- 6.375″ x 6.375″
- Black powder coated
- 1/2″ fitting for use with any Crystal Fire burner over 100,000 BTU’s/hour
- Key included
|
|
3/8″ Fitting Black Key Valve Control Panel for Fire Pit Tables
- Do-it-yourself control panel with 1/4 turn key valve
- 6.375″ x 6.375″
- Black powder coated
- 3/8″ fitting for use with any Crystal Fire burner under 100,000 BTU’s/hour
- Key included
|
|
6.5″ X 6.5″ Control Panel with 0.25″ Turn Key Built In Valve
- Additional safety feature for fire table to further control on/off capabilities
- Black panel and key
- 6.5″ x 6.5″ Control Panel with 1/4 Turn-Key Valve Built-in, 1/2″ fitting.
- Use with Burners over 100,000 BTUs.
|
|
3″ Black Key for Key Valves
- 3″ Black Key for The Outdoor GreatRoom Company Key Valves.
|
|
About The Manufacturer:
The Outdoor GreatRoom Company (OGC) is a popular choice for outdoor living products, particularly fire pits and tables, due to its focus on design, quality, and customer service. OGC is known for its innovative technology like the Crystal Fire Plus burner, and its products are designed and built to last, using durable, outdoor-rated materials. They also prioritize safety, with products UL, ULC, and CE listed.
